Quick start (with call invitation)

Prerequisites

• Go to ZEGOCLOUD Admin Console to create a UIKit project.
• Get the AppID and AppSign of the project.

​If you don't know how to create a project and obtain an app ID, please refer to this guide.

Add ZegoUIKitPrebuiltCall as dependencies

• Open Terminal, navigate to your project's root directory, and run the following to create a podfile:

  pod init

• Edit the Podfile file to add the basic dependencies:

  pod 'ZegoUIKitPrebuiltCall'
  pod 'ZegoUIKitSignalingPlugin'
  pod 'ZegoUIKitAppleCallKitPlugin'

• In Terminal, run the following to download all required dependencies and SDK with Cocoapods:

  pod install

Integrate the SDK with the call invitation feature

Initialize the call invitation service

Call the init method on the App startup, and specify the userID and userName for connecting the Call Kit service.

class ViewController: UIViewController {
    override func viewDidLoad() {
        super.viewDidLoad()
        // Get your AppID and AppSign from ZEGOCLOUD's Console
        // userID can only contain numbers, letters, and '_'.
        let config = ZegoUIKitPrebuiltCallInvitationConfig(notifyWhenAppRunningInBackgroundOrQuit: true, isSandboxEnvironment: false)
        ZegoUIKitPrebuiltCallInvitationService.shared.initWithAppID(YOUR_APPID, appSign: YOUR_APP_SIGN, userID:YOUR_USER_ID, userName:YOUR_USER_NAME, config: config)
    }
}

Parameters of ZegoUIKitPrebuiltCallInvitationConfig class

Parameters of ZegoUIKitPrebuiltCallInvitationService class

Add the button for making call invitations

You can customize the position of the ZegoSendCallInvitationButton accordingly, pass in the ID of the user you want to call.

1. Set up a button for making a voice call.

class ViewController: UIViewController {
    override func viewDidLoad() {
        super.viewDidLoad()

        // Create Voice Call invitation Button
        let callTargetUser: ZegoUIKitUser = ZegoUIKitUser.init("TargetUserID", "TargetUserName")
        let sendVoiceCallButton: ZegoSendCallInvitationButton = ZegoSendCallInvitationButton(ZegoInvitationType.voiceCall.rawValue)
        sendVoiceCallButton.text = "voice"
        sendVoiceCallButton.setTitleColor(UIColor.blue, for: .normal)
        sendVoiceCallButton.inviteeList.append(callTargetUser)
        sendVoiceCallButton.resourceID = "zegouikit_call" // For offline call notification
        sendVoiceCallButton.frame = CGRect.init(x: 100, y: 100, width: 150, height: 40)
        // Add the button to your view
        self.view.addSubview(sendVoiceCallButton)
    }
}

2. Set up a button for making a video call.

class ViewController: UIViewController {
    override func viewDidLoad() {
        super.viewDidLoad()

        // Create Video Call invitation Button
        let callTargetUser: ZegoUIKitUser = ZegoUIKitUser.init("TargetUserID", "TargetUserName")
        let sendVideoCallButton: ZegoSendCallInvitationButton = ZegoSendCallInvitationButton(ZegoInvitationType.videoCall.rawValue)
        sendVideoCallButton.text = "Video"
        sendVideoCallButton.setTitleColor(UIColor.blue, for: .normal)
        sendVideoCallButton.inviteeList.append(callTargetUser)
        sendVideoCallButton.resourceID = "zegouikit_call" // For offline call notification
        sendVideoCallButton.frame = CGRect.init(x: 100, y: 100, width: 150, height: 40)
        // Add the button to your view.
        self.view.addSubview(sendVideoCallButton)
    }
}

Parameters of ZegoSendCallInvitationButton class

For more parameters, go to Custom prebuilt UI.

Now, you can make call invitations by simply clicking on the buttons you set.

Configure your project

1. Apple Developer Center and ZEGOCLOUD Console Configuration

• step1. You need to refer to Create VoIP services certificates to create the VoIP service certificate, and ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​export a .p12 file on your Mac.

• step2. Add the voip service certificate .p12 file. Then, create a resource ID;

​In the create resource ID popup dialog, you should switch to the VoIP option for APNs, and switch to Data messages for FCM.

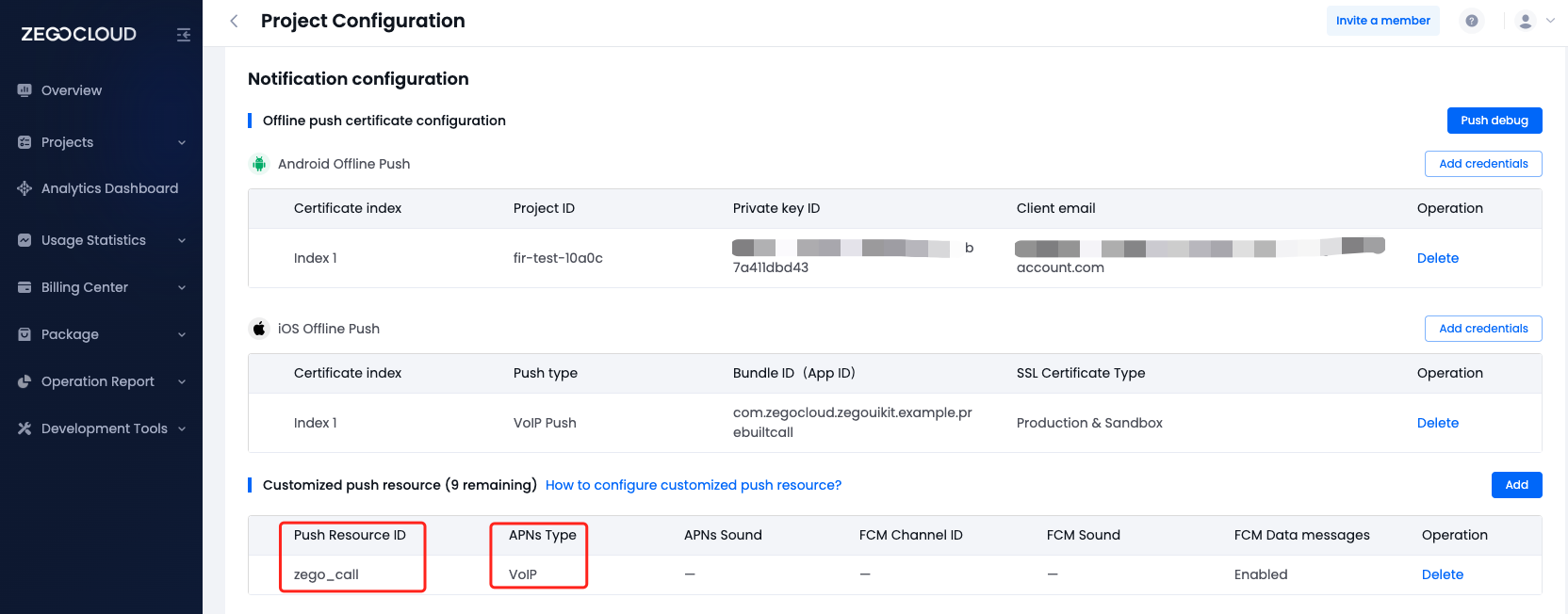

When you have completed the configuration, you will obtain the resourceID. You can refer to the image below for comparison.

2. Add app permissions

Open the my_project/ios/my_project/Info.plist file and add the following:

<key>NSCameraUsageDescription</key>
<string>We need to use the camera</string>
<key>NSMicrophoneUsageDescription</key>
<string>We need to use the microphone</string>

3. Get the APNs device token

• step1. In the AppDelegate.swift file, implement Apple's register callback for receiving the deviceToken:

func application(_ application: UIApplication, didRegisterForRemoteNotificationsWithDeviceToken deviceToken: Data){

}

• step2. In the didRegisterForRemoteNotificationsWithDeviceToken callback, call the setRemoteNotificationsDeviceToken method to get the deviceToken:

import ZegoUIKitPrebuiltCall

func application(_ application: UIApplication, didRegisterForRemoteNotificationsWithDeviceToken deviceToken: Data) {
/// Required - Set the device token
  ZegoUIKitPrebuiltCallInvitationService.setRemoteNotificationsDeviceToken(deviceToken)
}

4. Add Push Notifications configuration

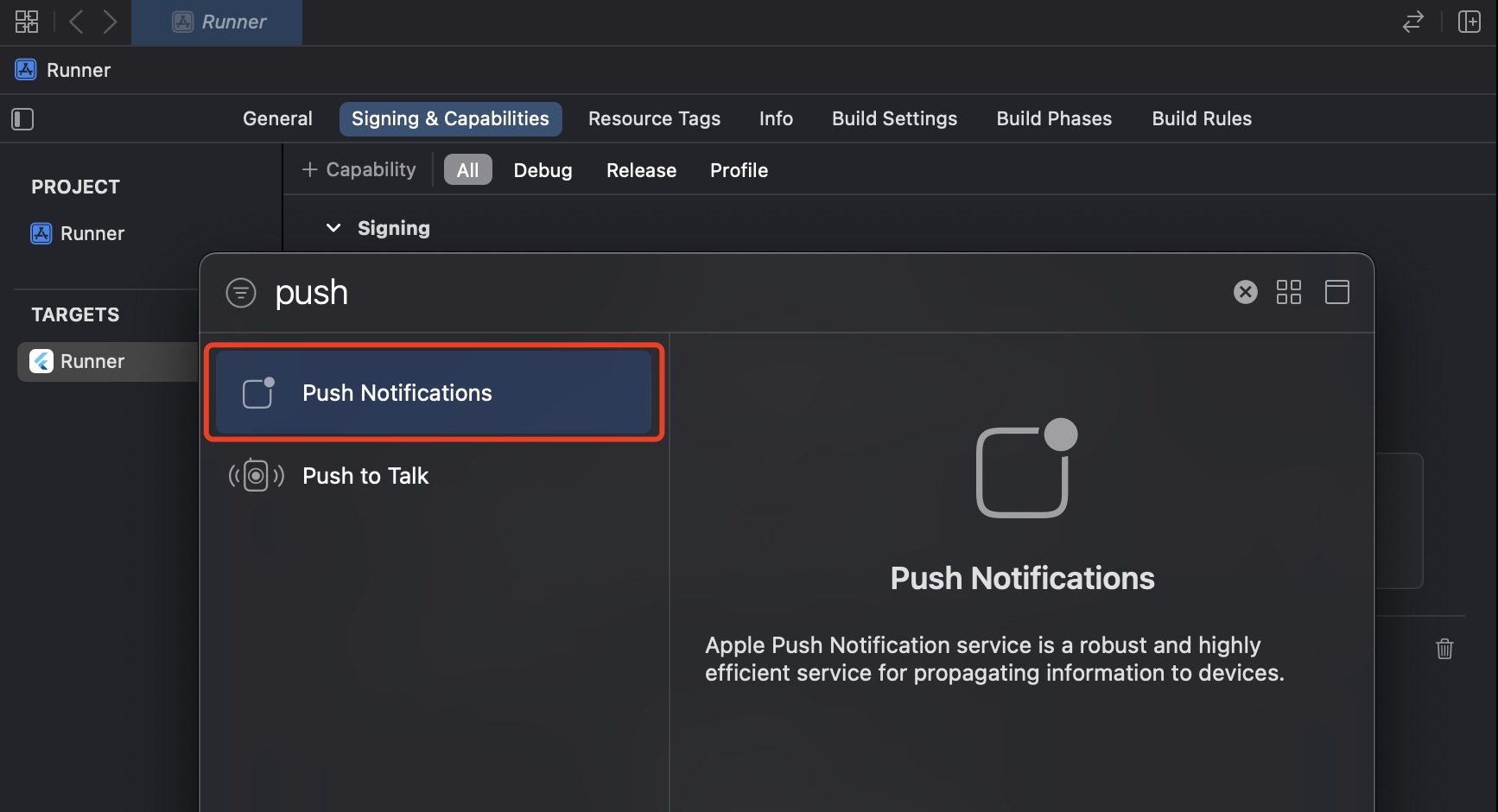

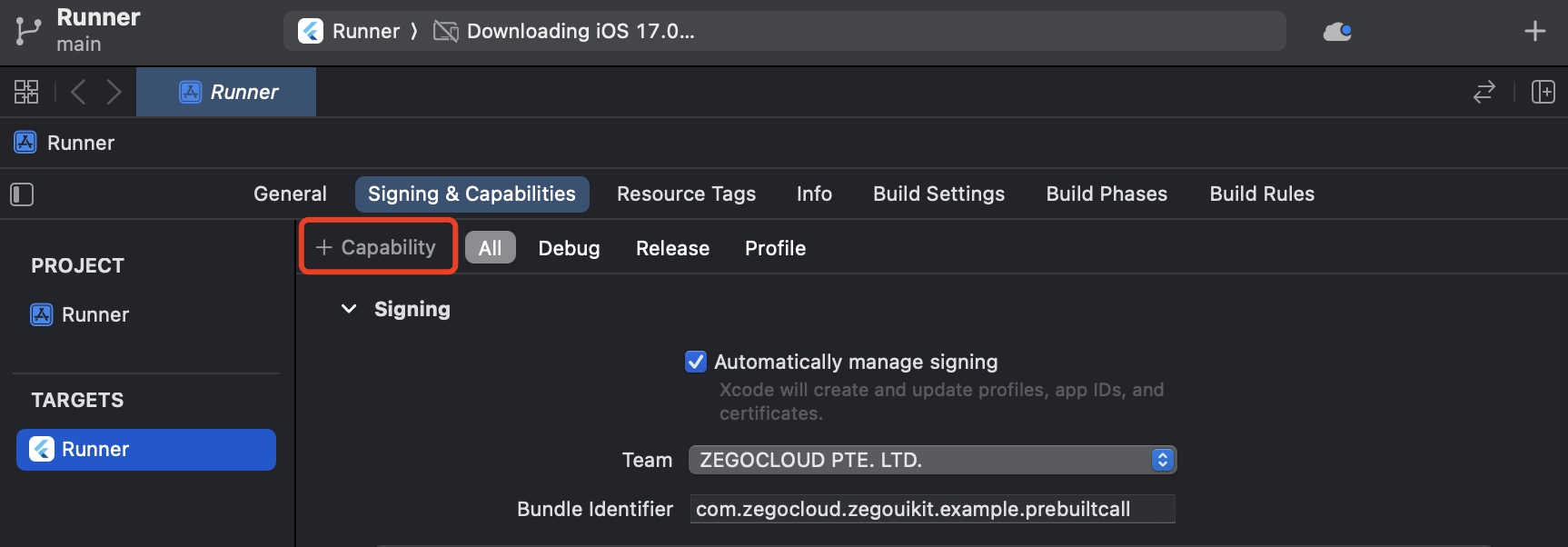

Open the project with Xcode, and click the+ Capability on the Signing & Capabilities page.

And double-click on Push Notifications to add this feature.

5. Add the Background Modes capability.

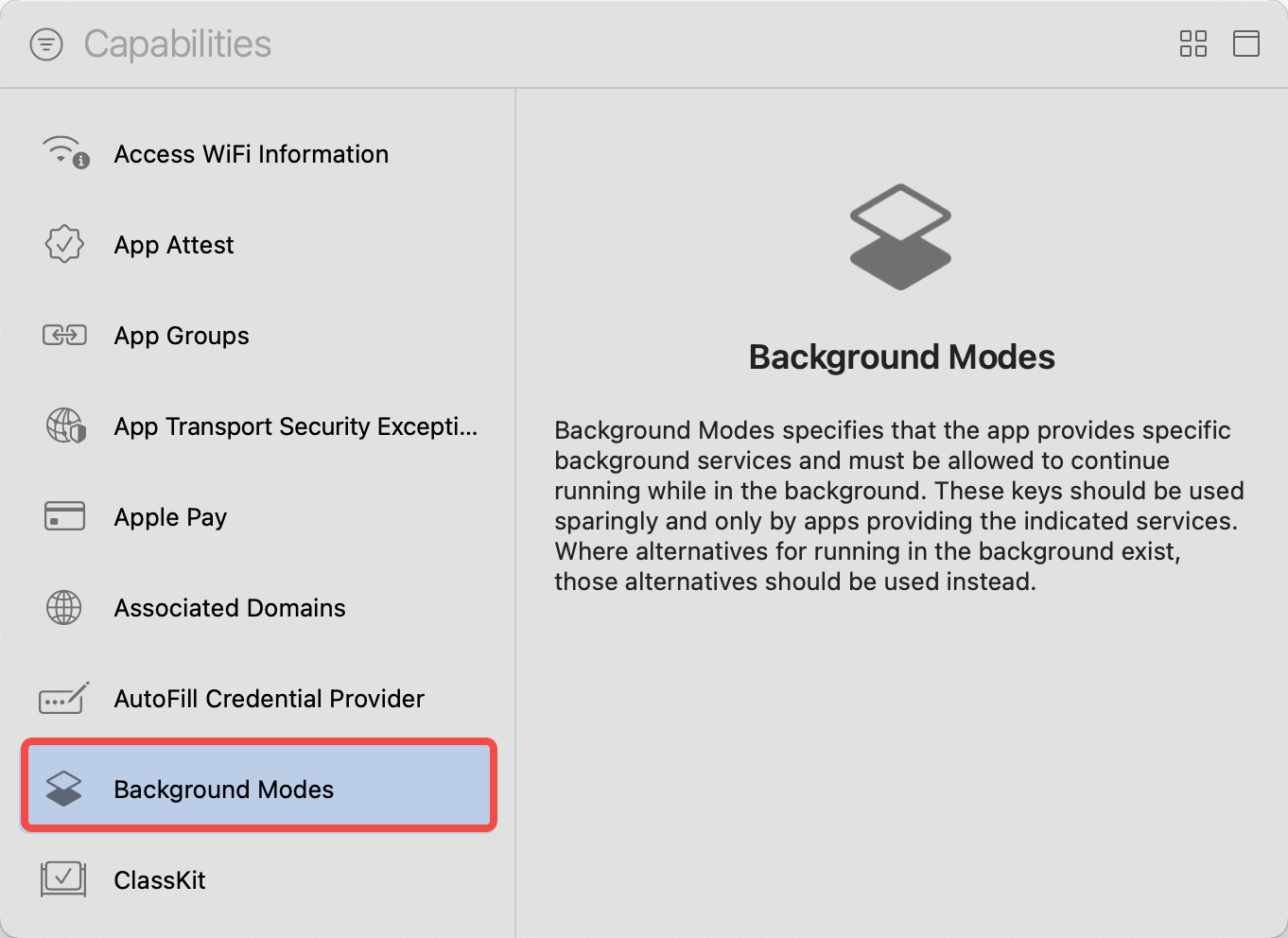

Open the project with Xcode, and click the+ Capability on the Signing & Capabilities page again.

And double-click on Background Modes in the pop-up window. This will allow you to see the Background Modes configuration in the Signing & Capabilities.

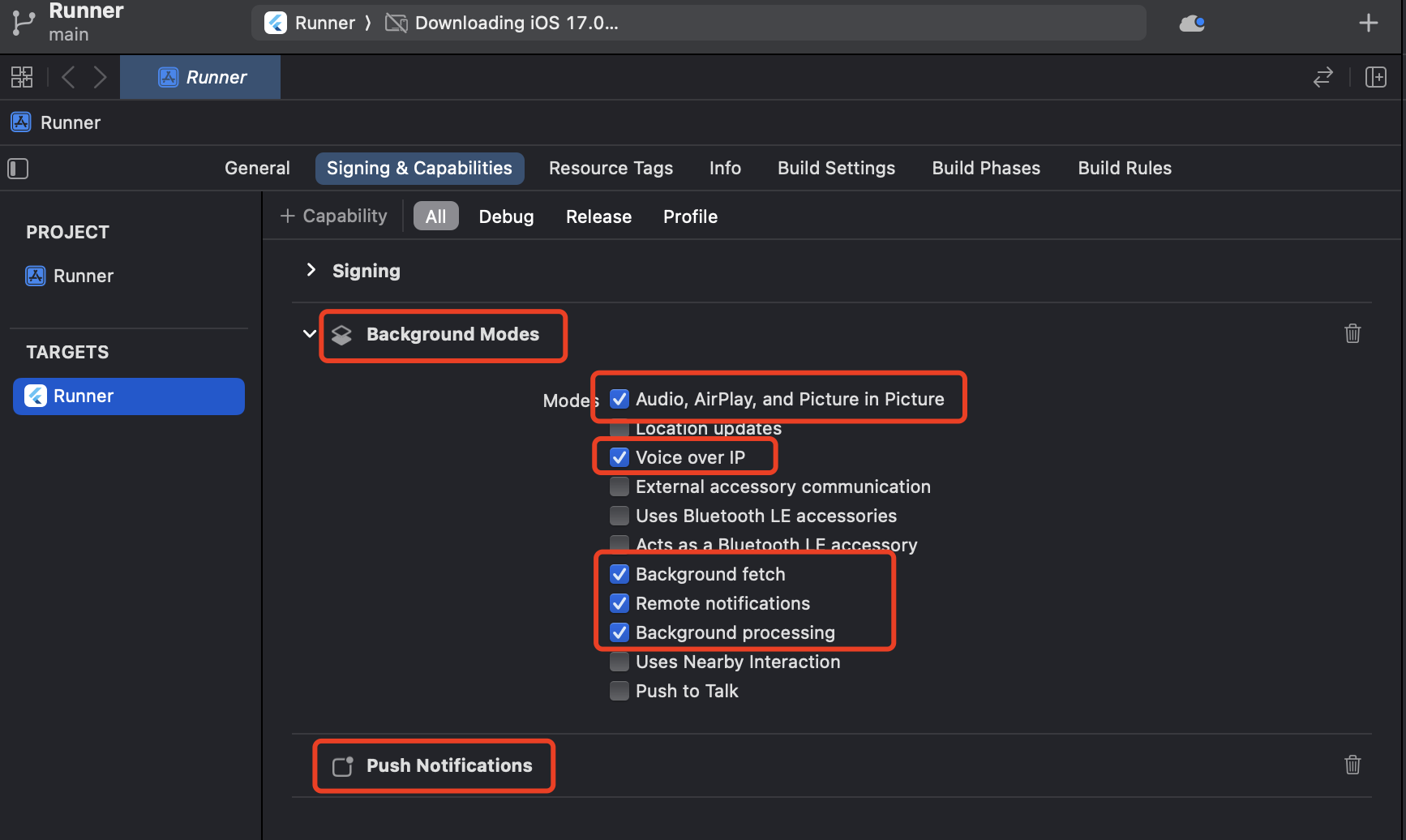

6. Check and Make sure the following features are enabled

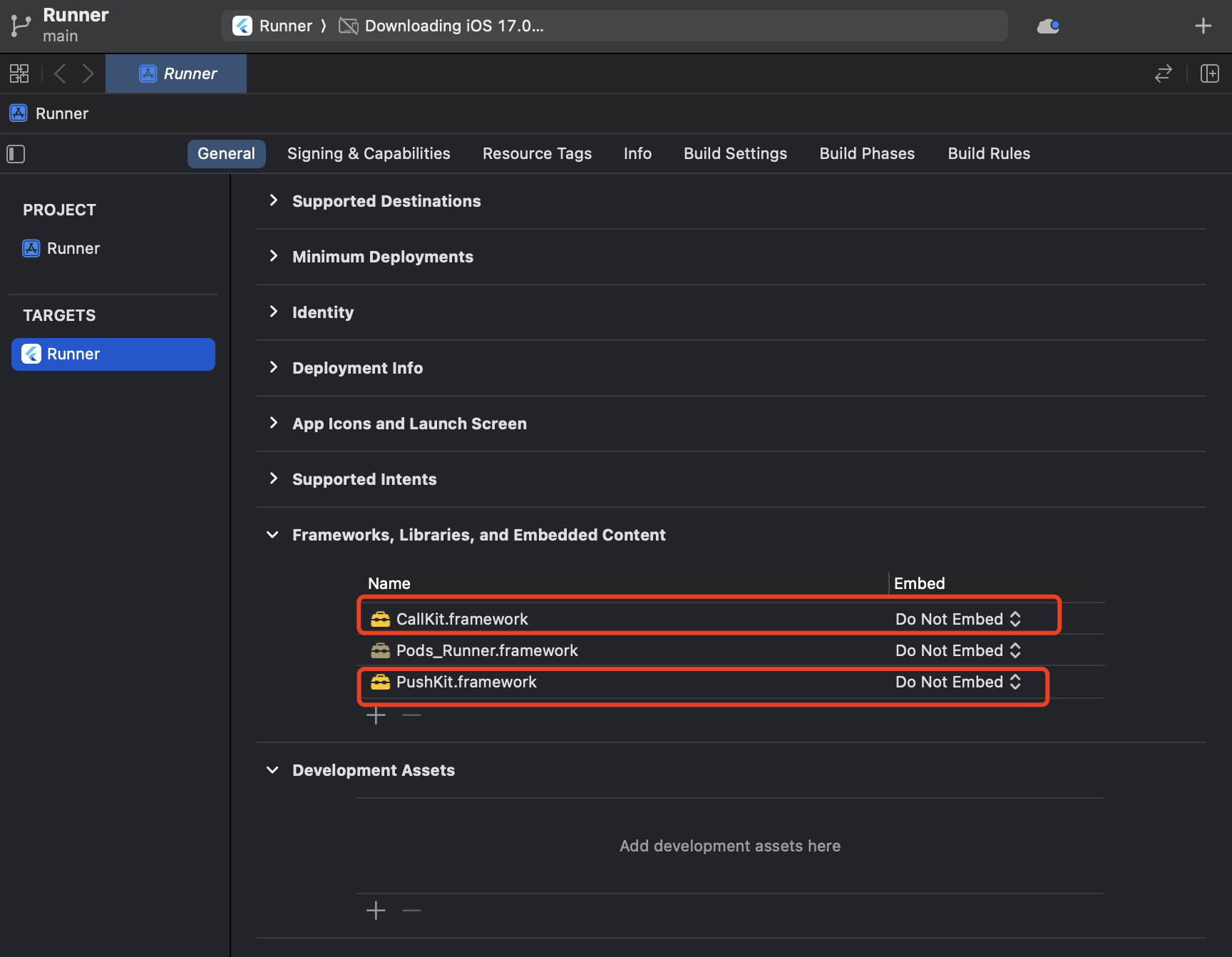

7. Import the PushKit and CallKit libraries.

Run & Test

Now you have finished all the steps!

You can simply click the Run in XCode to run and test your App on your device.
